AC SERVICE STATION

ACMAS702

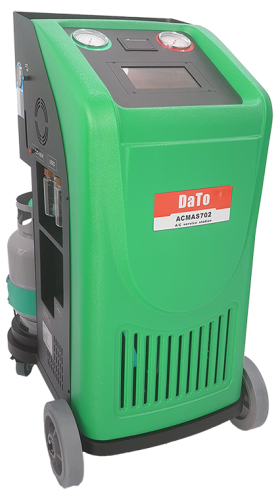

DaTo ACMAS702 is an entry model, suitable for new A/C practitioners, or for areas where price is sensitive. The unique design has facilitated quick load cell unlock, easy and economic maintenance, self-troubleshooting and convenient USB upgrade etc.

Features
Specifications

Recovery
Vacuum
Charge
Tank fill
Automatic mode.

Specification	Parameters
Input Power	AC220V±10%~50/60Hz, AC110V±10%~60Hz
Compressor power	3/8Hp
Recovery rate	96%
Vacuum pump capacity	120L/min, non-sparkle
Vacuum leak test	1-60min
Accuracy of gas cylinder load cell	±10g
Max Pressure	20bar
Charge Speed	2Kg/Min(max)
LCD display	7-inch, touch screen
High pressure gauge range	-1bar~40bar
Low pressure gauge range	-1bar~22bar
Dual gas cylinder capacity	10Kg
Average gas refrigerant recovery speed	0.25Kg/min
Dimension	610x595x1075mm³
