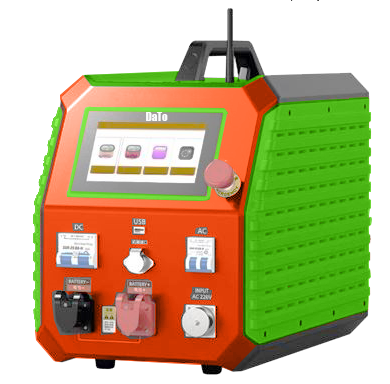

iSmartEV CD260
Battery Pack Module Charging &Discharging Integrated Machine
Reverse polarity, too high temperature, short overcurrent, fan failure, too high voltage, too large current will be alarmed. It can collect the highest/lowest voltage, temperature and other data of a single string battery. The collected data are displayed on the screen in the form of column chart, report form and curve, which can be zoom in/out locally for easy viewing.
- Multi-Purpose
- Multiple Discharge Modes
- Efficient Charging Mode
- Battery Pack Activation
- Information collection
- Protection alarm
Specification |
Parameters |
Working power supply |
Single-phase three-wire AC220V |
frequency range |
40~60Hz |
Display |
7-inch TFT LCD screen, resolution 800×480 |
Data communication |
CANRs485 |
Group terminal voltage accuracy |
≤±0.5%FS+0.3V，resolution：0.1V |
Single voltage accuracy |
≤±0.1%FS+5mV，resolution：0.001V |
Test current accuracy |
≤±1%FS+0.2A，resolution：0.1A |
Charge and discharge voltage range |
DC2~260V |
Charge current range |
Maximum current 100A, maximum power 4.4kW |
Discharge current range |
Max current：150A / max power：7.2kW |
Charge control |
Constant current charging + constant voltage charging |
Discharge mode |
Constant current discharge |
Charge、 discharge protection |
Overchargeandover-dischargeprotection,over-hightemperatureprotection |
Host protection |
Over-temperature,over-currentandout-ofcontrolcurrenttriggershutdownprotection |
Reverse polarity protection |
Supported |
Abnormal protection |
Power cord power failure, main cable power failure |
Over-temperature protection |
Theresistanceboxover-temperatureis85℃;Radiatorovertemperatureis100℃ |
