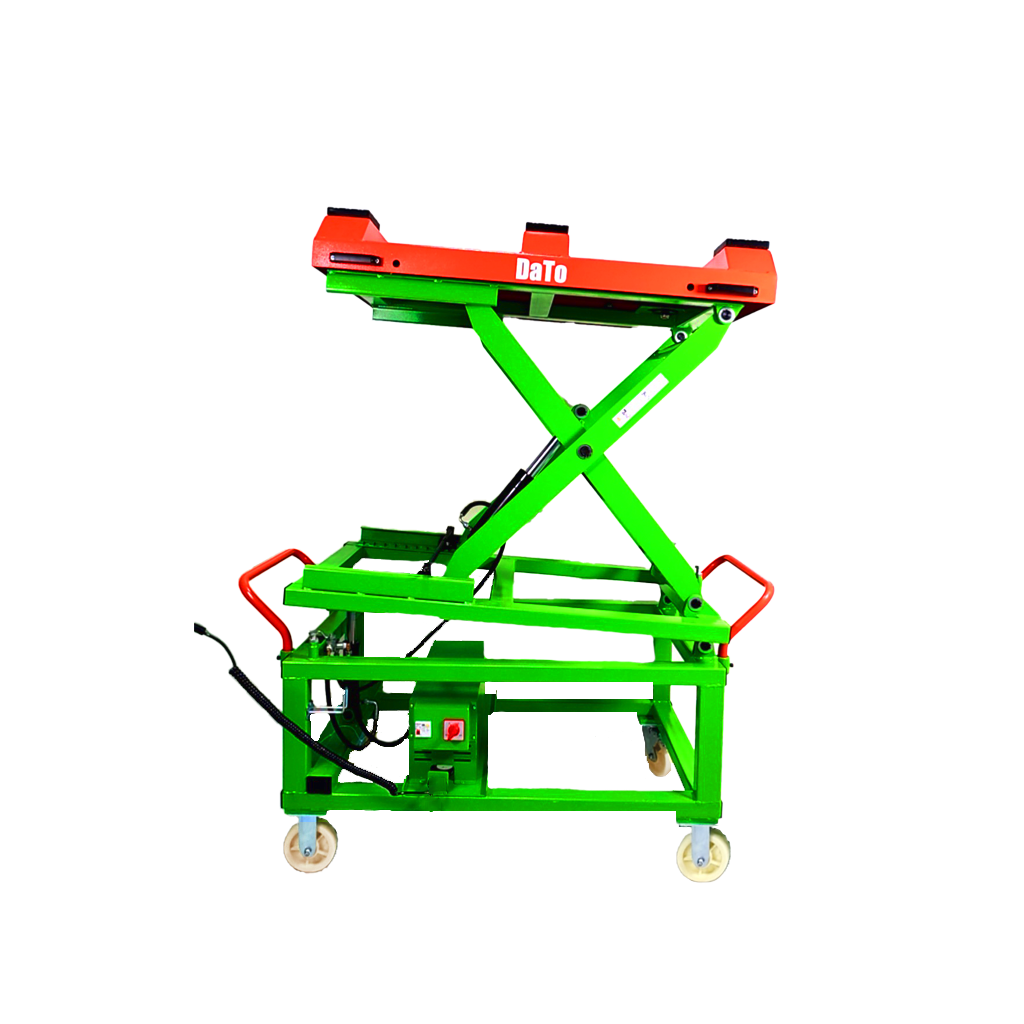

EV BATTERY LIFT

LJS-3315

The DaTo LJS 3315 EV Battery Lift is a professional electrical vehicle battery pack disassembly and assembly machine, and can quickly and safely complete the battery pack disassembly and assembly from the bottom of the vehicle, and move and repair positions. Equipped with heavy 360universal mobile casters to move or lock in place, and equipped with pressure insulation protective pads to protect the safety of maintenance personnel..

Ev battery lift
Ev battery lift

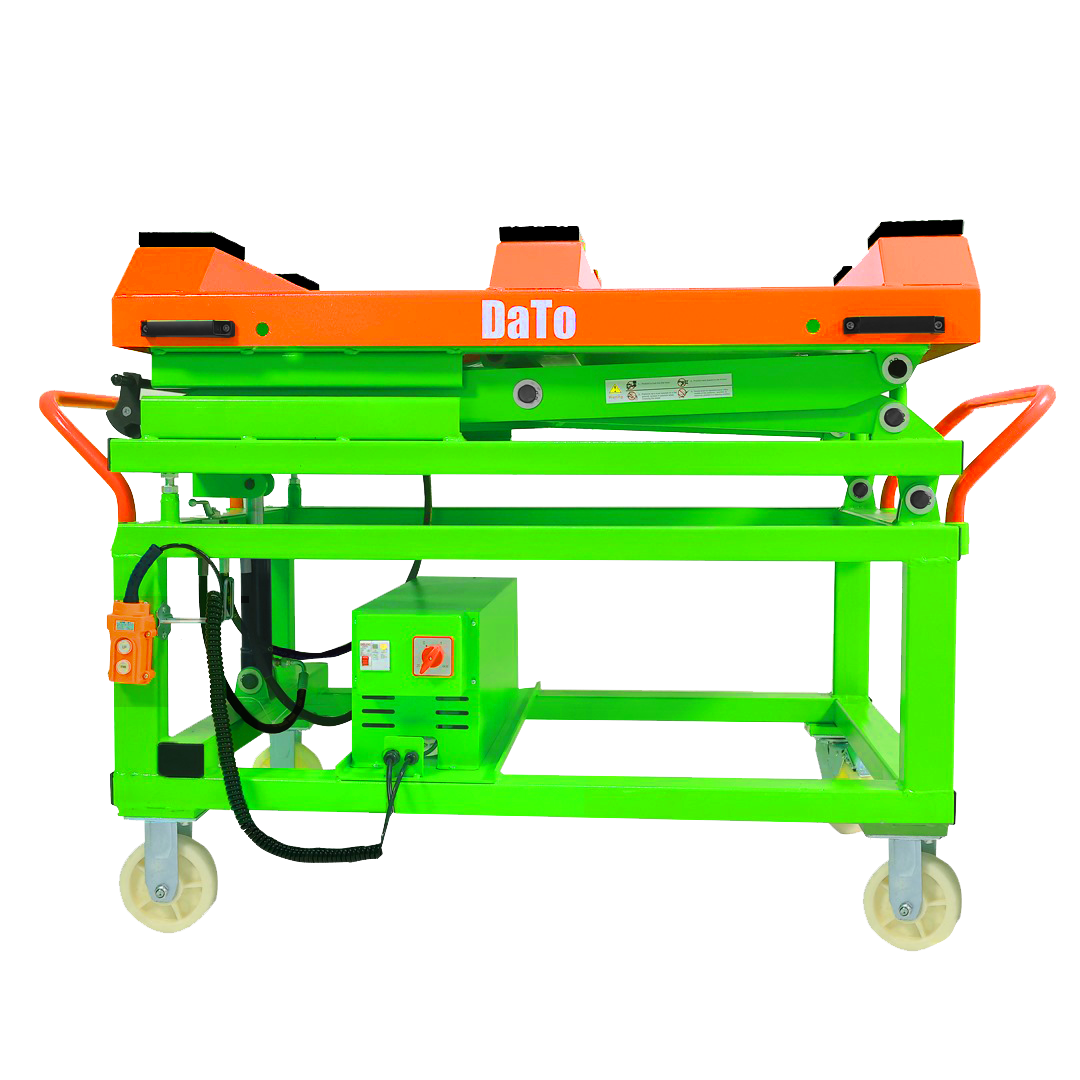

EV BATTERY LIFT

The DaTo LJS 3315 is a professional-grade lift designed for safe and efficient removal and installation of EV battery packs from beneath the vehicle. It features 360° heavy-duty swivel casters for easy maneuvering and secure positioning, along with insulated pressure pads to ensure technician safety during maintenance..

Specification

Parameters

Drive Method

EV Battery Lift

Voltage

AC90~264V/40~60Hz

Operating Voltage

24V

Power

0.75KW

Rated Lifting Weight

1.5T

Minimum Height

1100mm

Maximum Height

1850mm

Platform Width

800mm

Platform Length

1260mm

Tilt Angle

25°

Ascending Time

18s

Descending Time

11s(descending speed adjustable)

Size

1500x800x1100mm
